FG07101

Series: Recessed wall lights

size(mm): 85*48*85 mm

Input Voltage(V): 100-130V/220-240V

Frequency(Hz): 50/60Hz

CCT: 3000/4000/6500K

CRI: 80

Flux(Lumen): 55 lm

Beam Angle: 270

Safety Class: Ⅰ

IP Rating: IP65

Total Watt: 0.8W

Luminous efficacy(lm/W): 69

Main Material: ST304+PC

Diffuser: PC

Finish: Hairline brushed

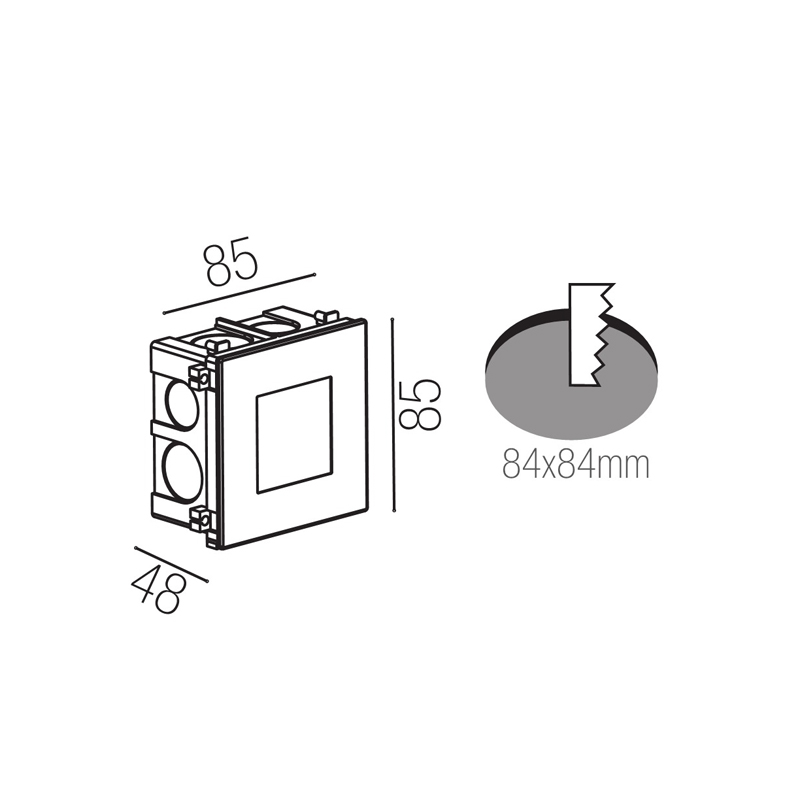

Cut off(mm): 84x84

+86 574 6251 7002
Contact Us
Product Details
Swipe the table left and right to view more information...
Model No.Input VoltageSafety RatingLED WattLuminius FluxBeam AngleCCTIP RatingL*W*H (mm)Features
FG07101100-130V/220-240VClass Ⅰ0.8 W55 lm270 °3000/4000/6500KIP6585x48x85 mm
FG07104100-130V/220-240V ACClass Ⅰ0.8 W75 lm
3000/4000/6500KIP6585x36x85 mmSuitable for the plastic housing with mounting hole of 60mm
FG07401100-130V/220-240VClass Ⅰ1.5 W60 lm270 °3000/4000/6500KIP6580x61x80 mm
FG07402100-130V/220-240VClass Ⅰ1.5 W45 lm270 °3000/4000/6500KIP6580x61x80 mm




Subclass image display

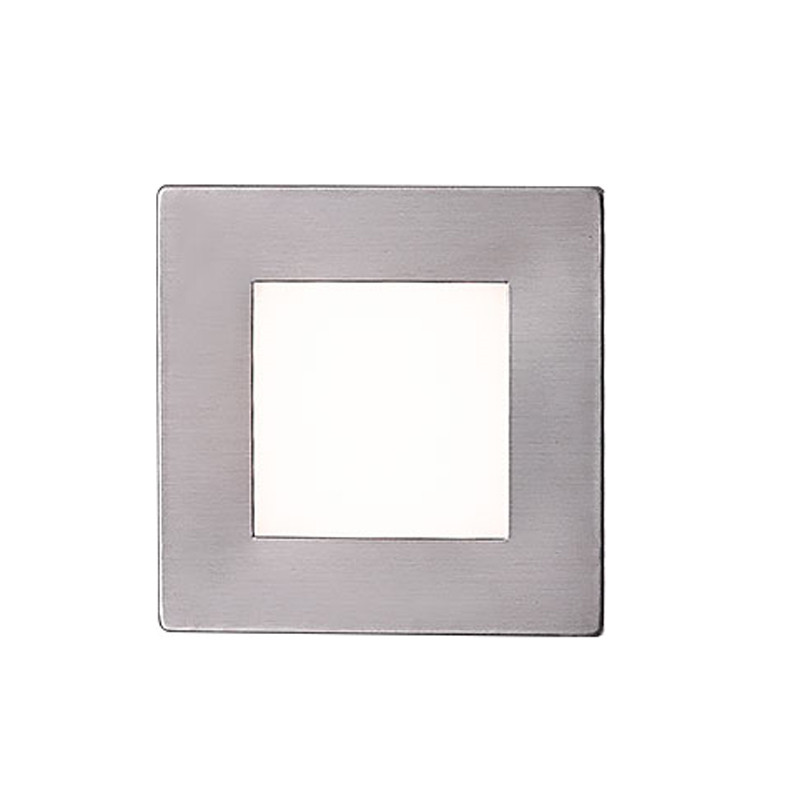

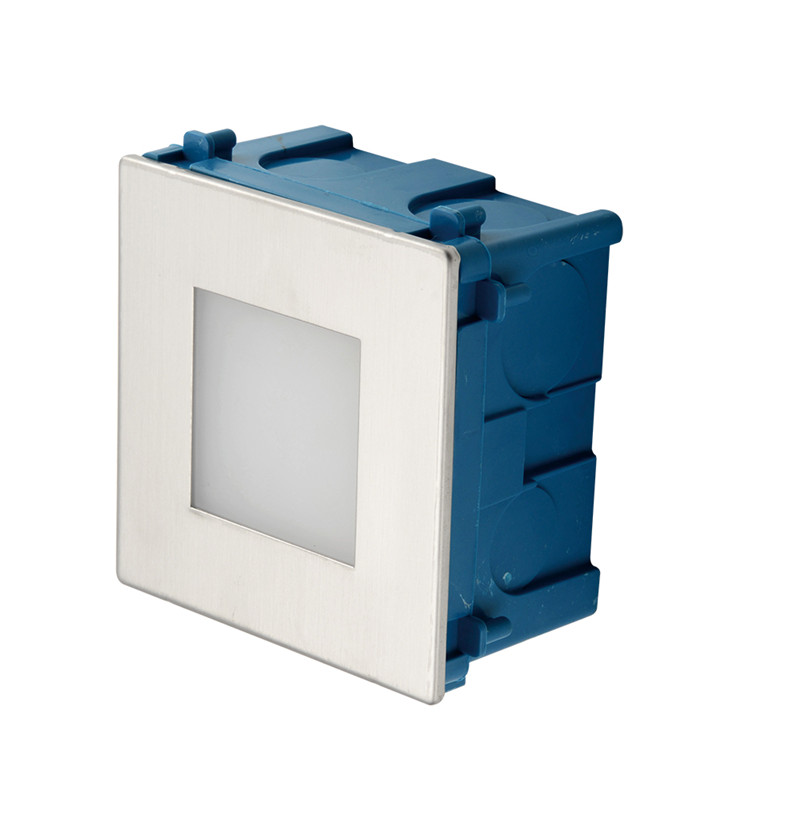

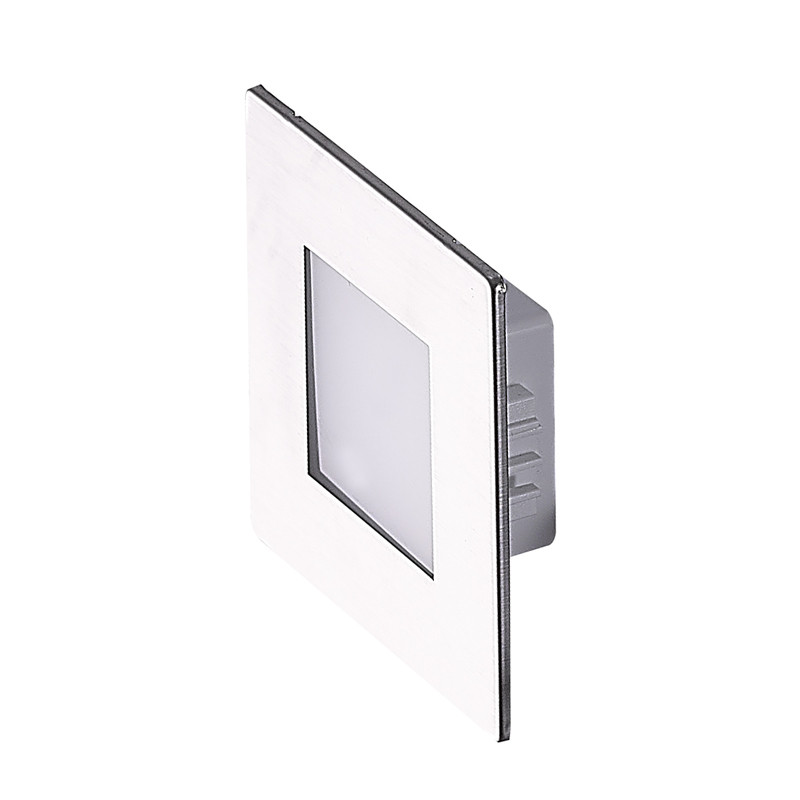

FG07104
FG07104
FG07104
FG07104
FG07104
FG07104

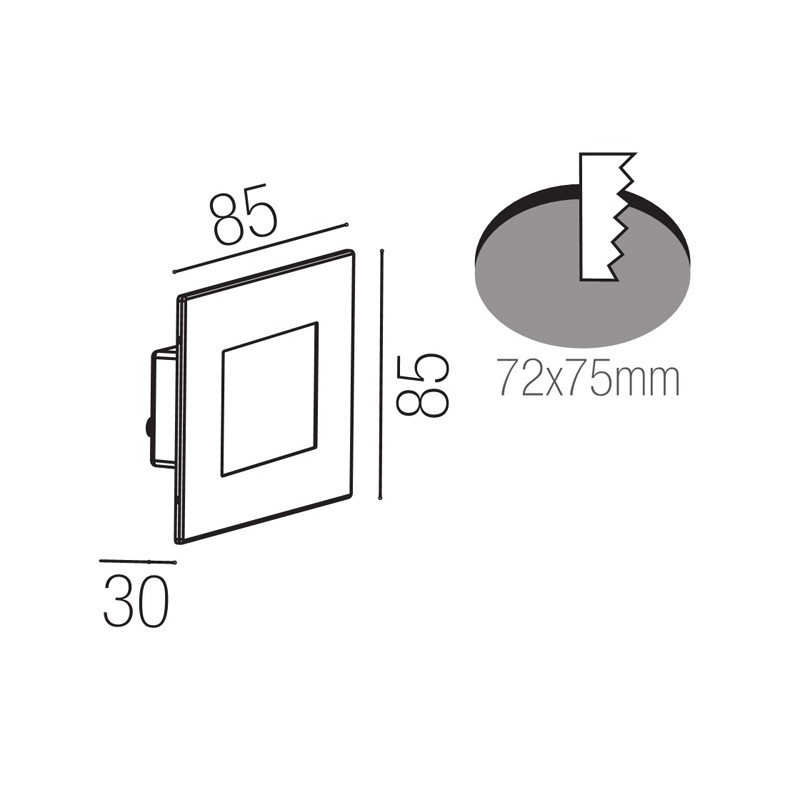

FG07104-line
FG07104-line

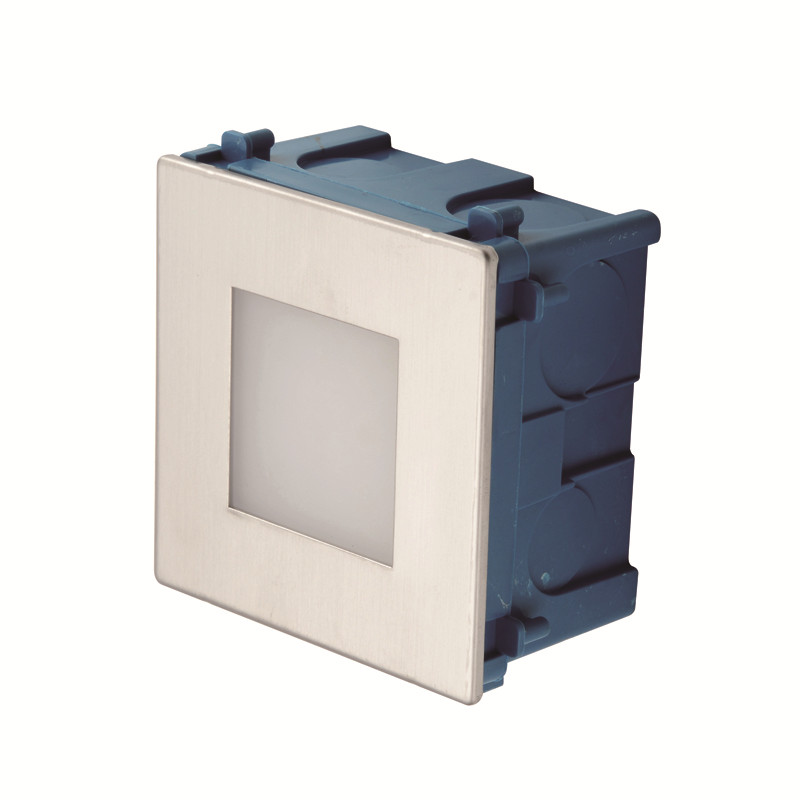

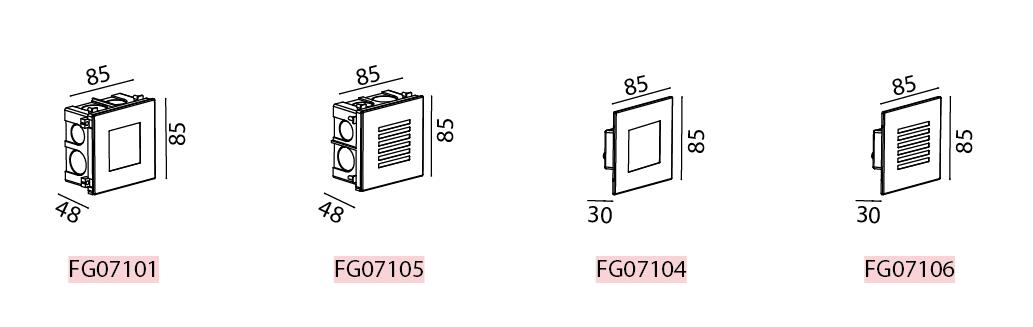

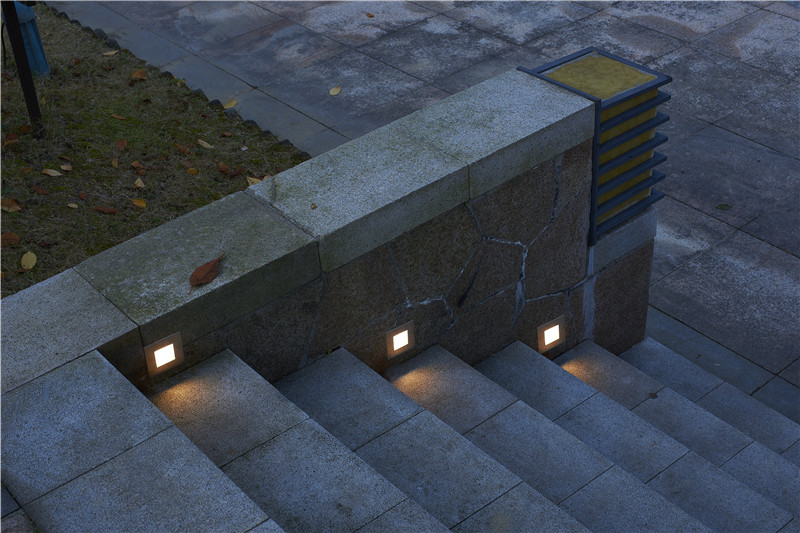

FG07101-FG07104
FG07101-FG07104

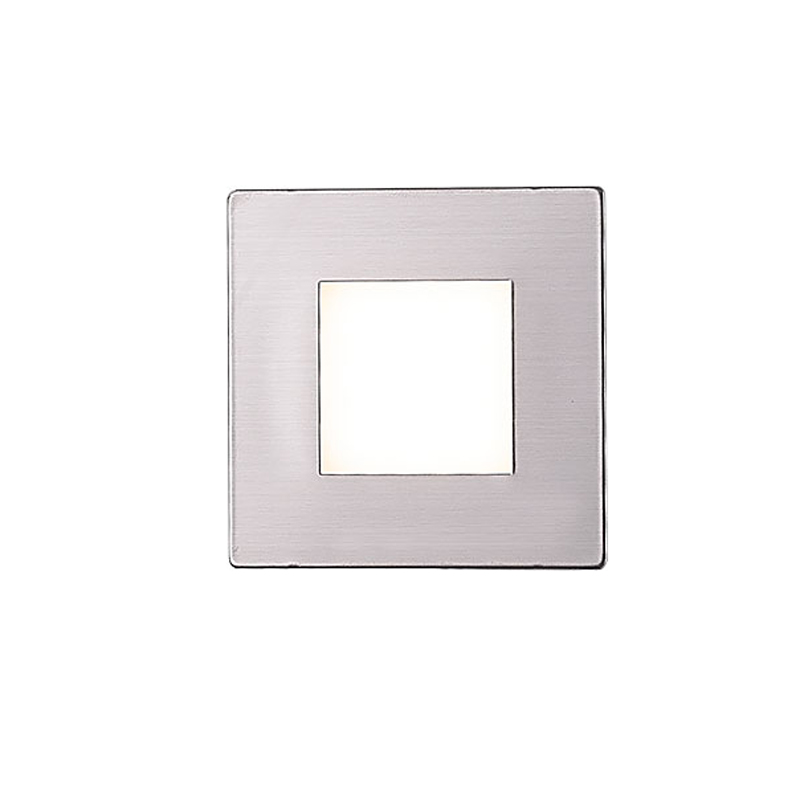

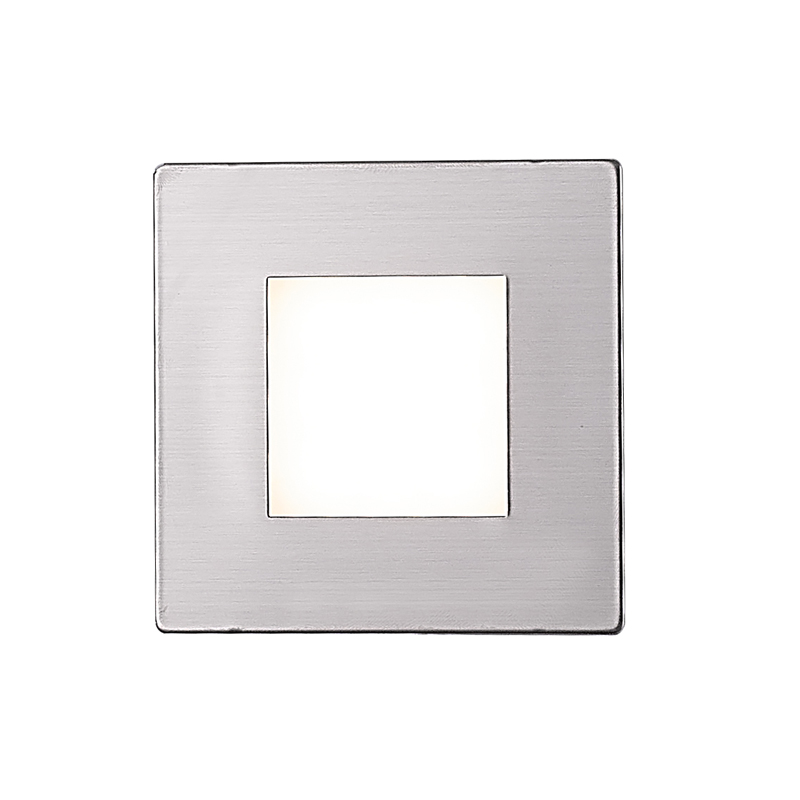

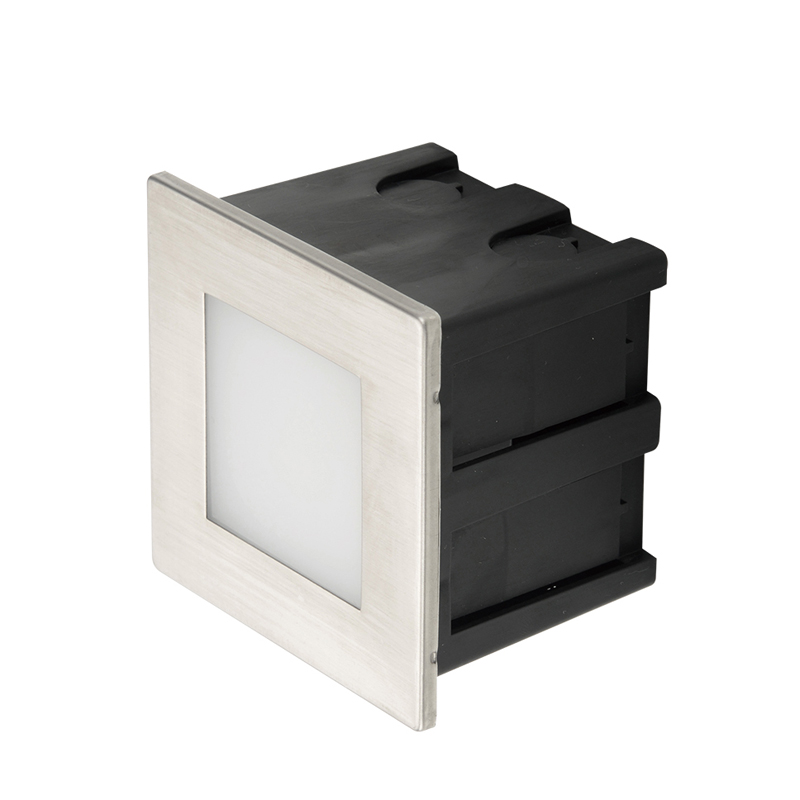

FG07401
FG07401
FG07401
FG07401
FG07401
FG07401

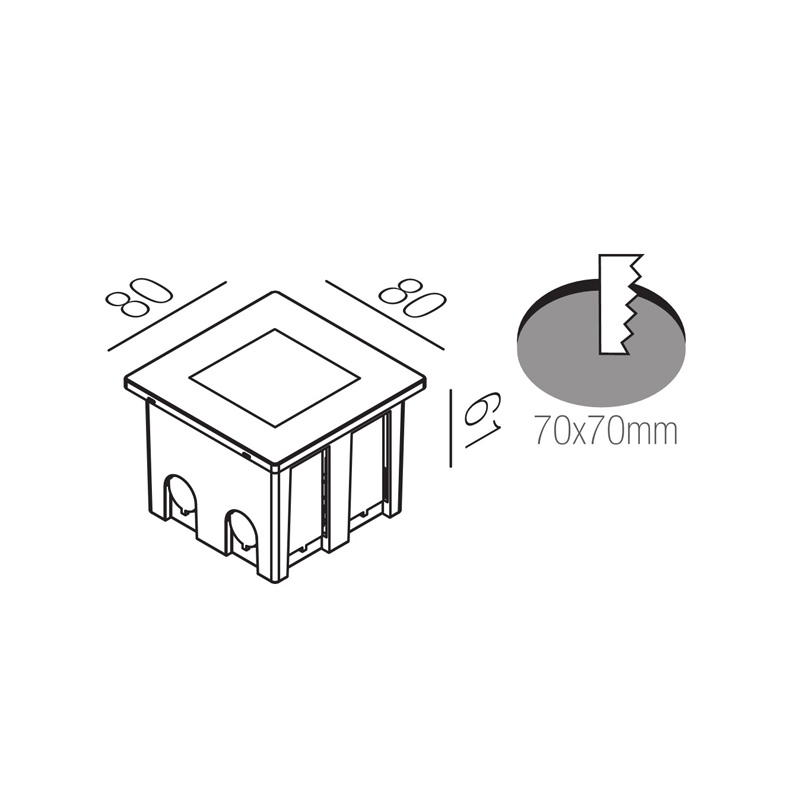

FG07401-line
FG07401-line

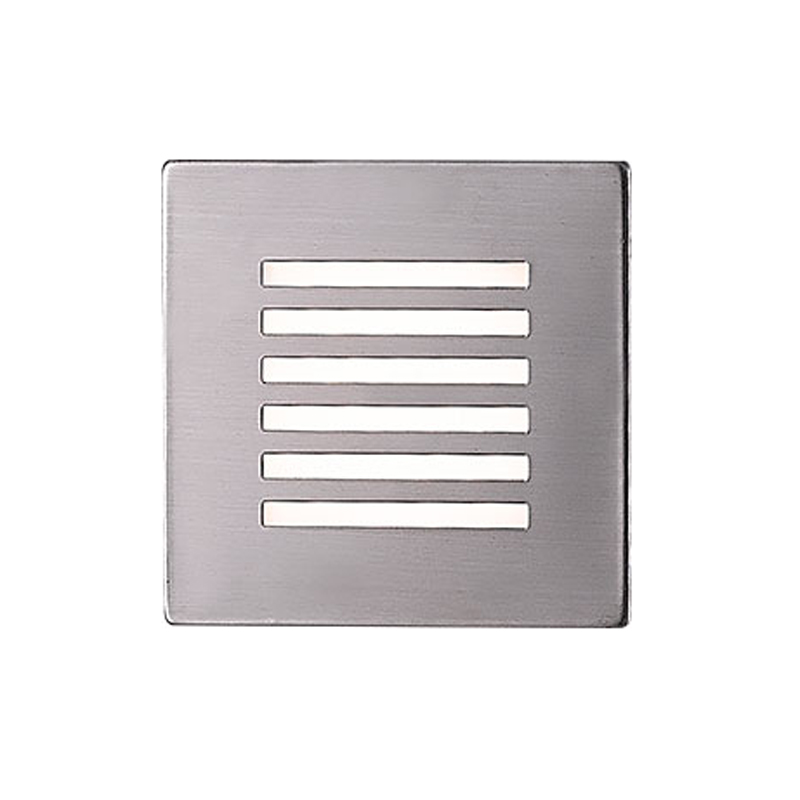

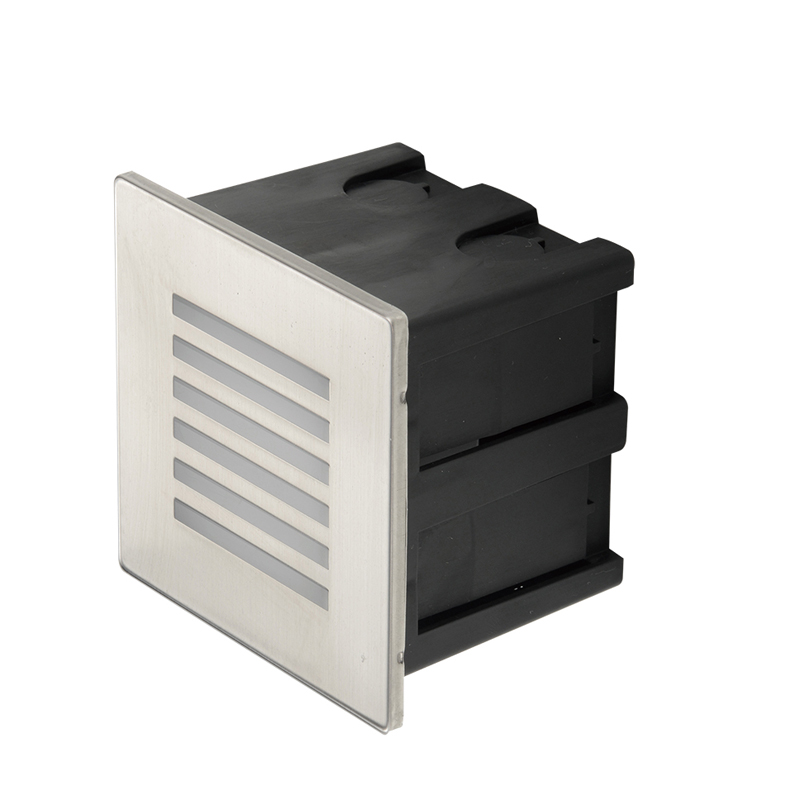

FG07402
FG07402

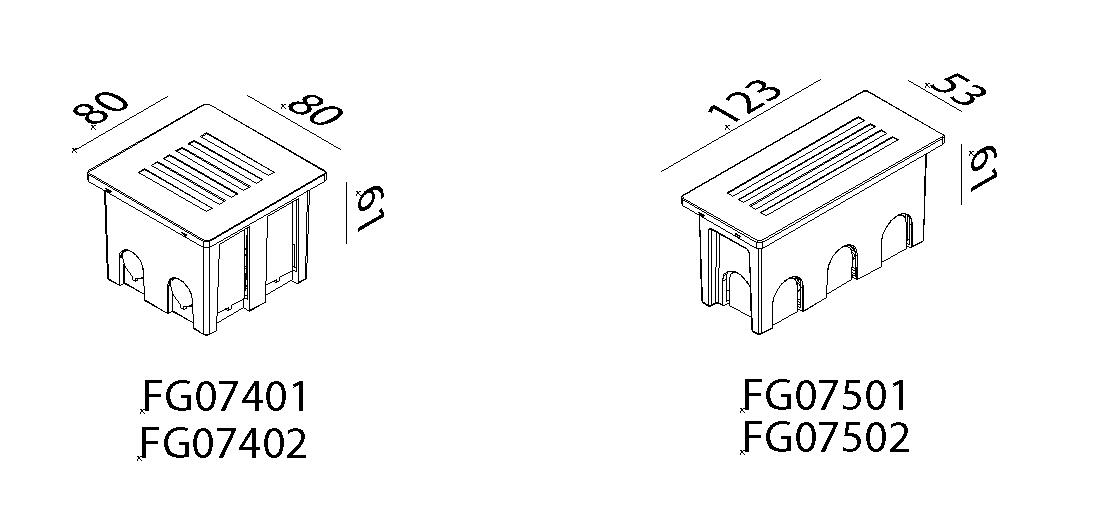

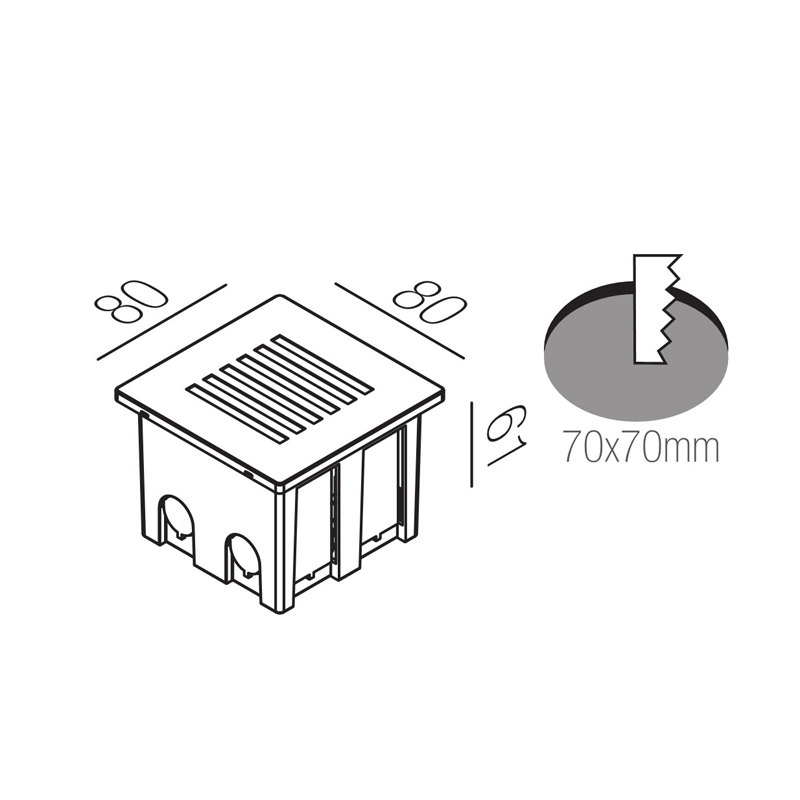

FG07402-line
FG07402-line
FG07402
FG07402
FG07402
FG07402
