FG06601

Series: Recessed wall lights

size(mm): 90*71*90 mm

Input Voltage(V): 220-240V

Frequency(Hz): 50/60Hz

CCT: 3000/4000/6500K

CRI: 80

Flux(Lumen): 25 lm

Beam Angle: <90

Safety Class: Ⅰ

IP Rating: IP65

Total Watt: 1W

Luminous efficacy(lm/W): 25

Main Material: Aluminium

Diffuser: Glass

Finish: Black/White/Silver

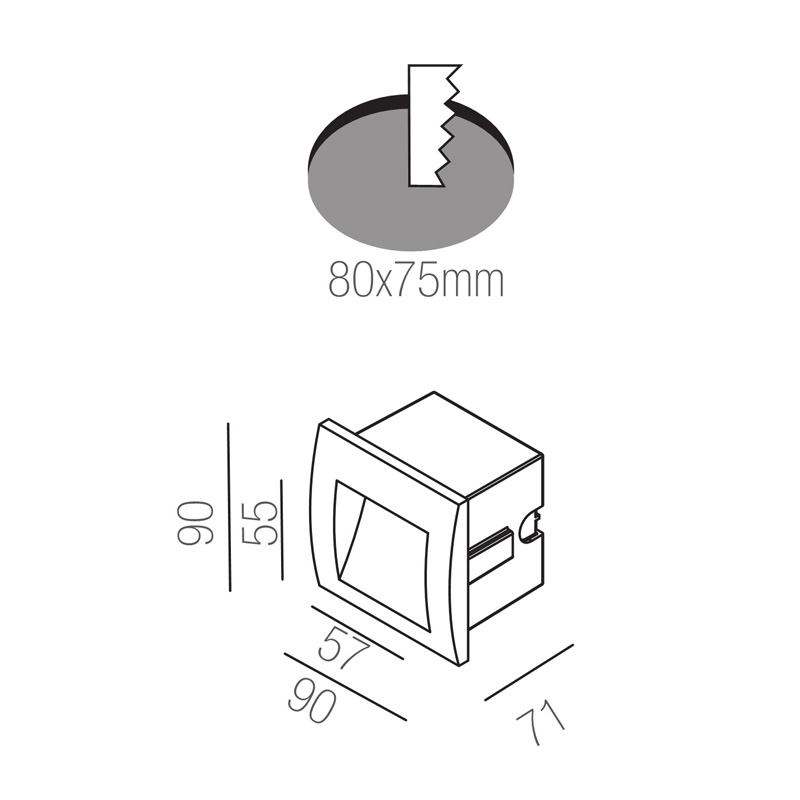

Cut off(mm): 80x75

+86 574 6251 7002
Contact Us
Product Details
Swipe the table left and right to view more information...
Model No.Input VoltageSafety RatingLED WattLuminius FluxBeam AngleCCTIP RatingL*W*H (mm)Features
FG06601220-240VClass Ⅰ1 W25 lm<90 °3000/4000/6500KIP6590x71x90 mm
FG06602220-240VClass Ⅰ3 W90 lm<90 °3000/4000/6500KIP65140x71x70 mm
FG06603220-240VClass Ⅰ3 W90 lm<90 °3000/4000/6500KIP65140x74x140 mm
FG06612100-240VClass Ⅰ3 W90 lm<903000/4000/6500KIP65140x71x70 mm
FG06613100-240VClass Ⅰ3 W90 lm<903000/4000/6500KIP56140x74x140 mm


Subclass image display

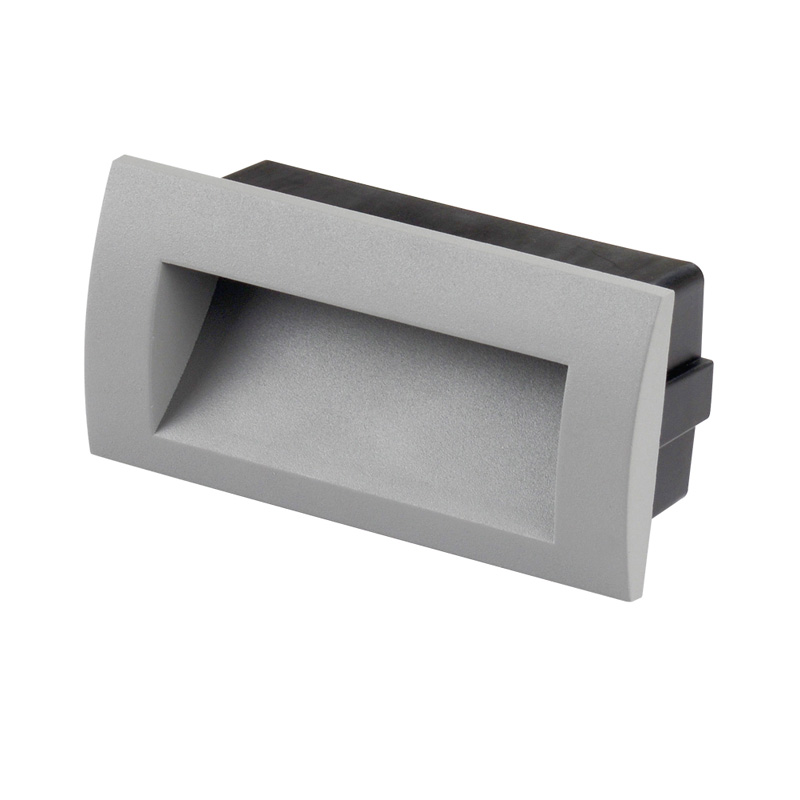

FG06602
FG06602

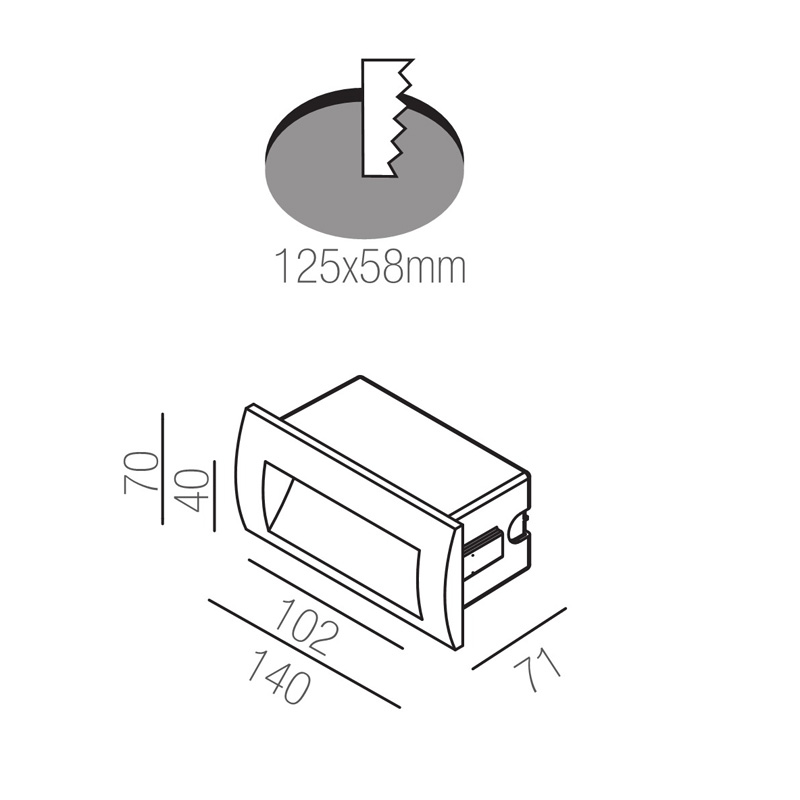

FG06602-line
FG06602-line

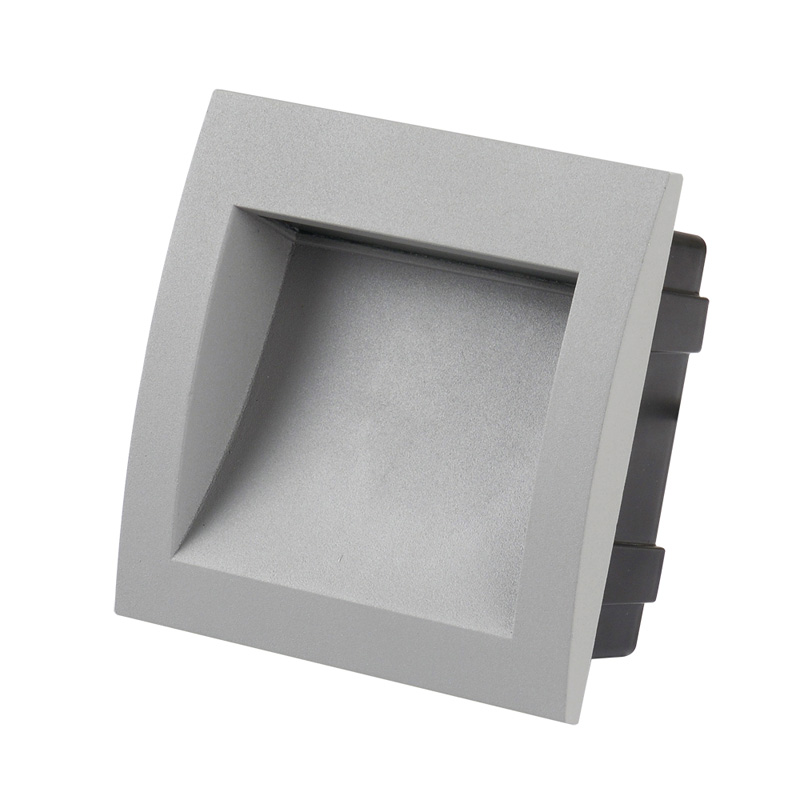

FG06603
FG06603

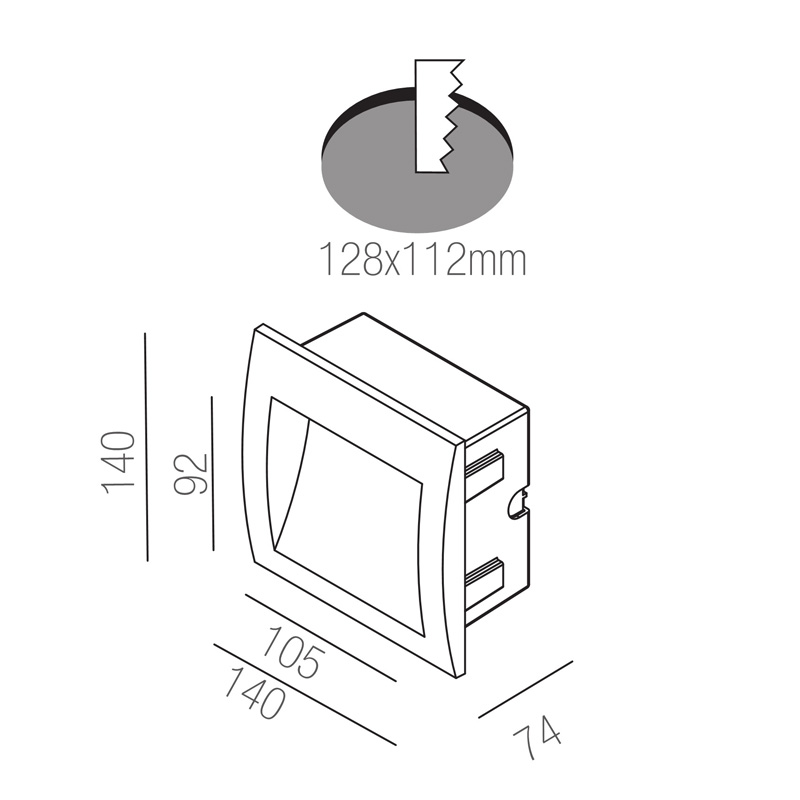

FG06603-line
FG06603-line

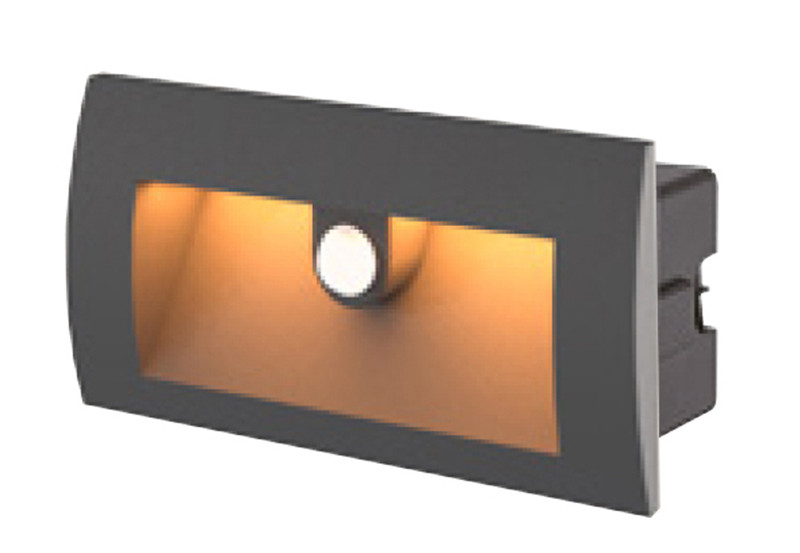

FG06612
FG06612

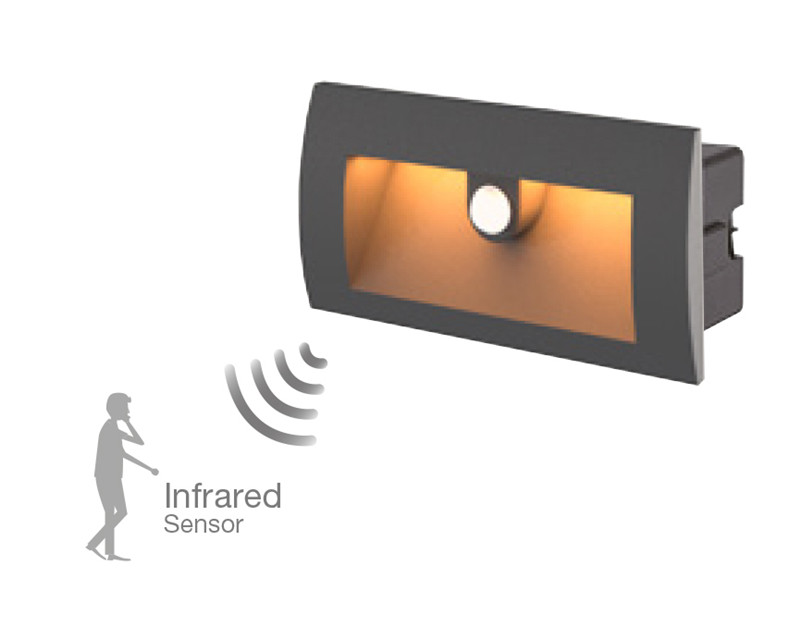

FG06612 (2)
FG06612 (2)

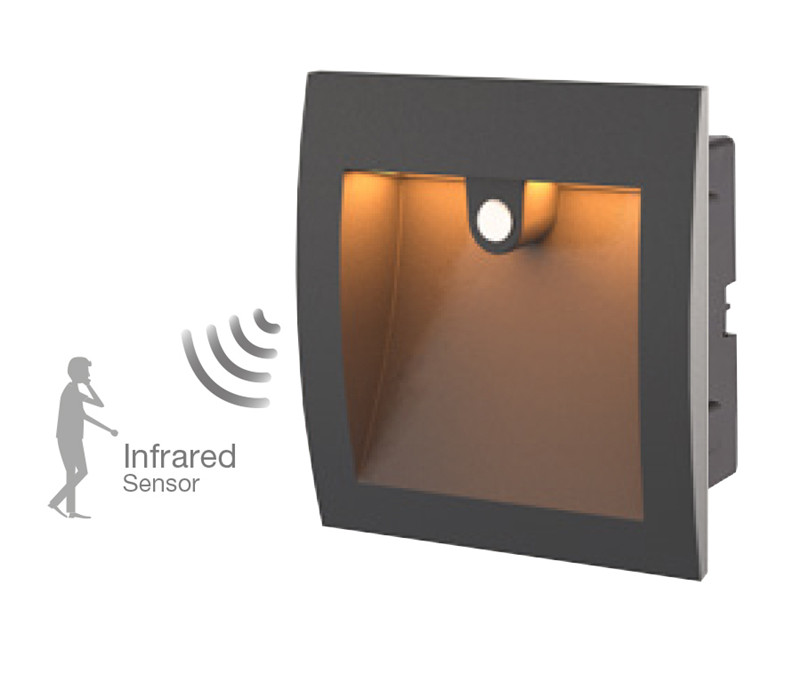

FG06613 (2)
FG06613 (2)

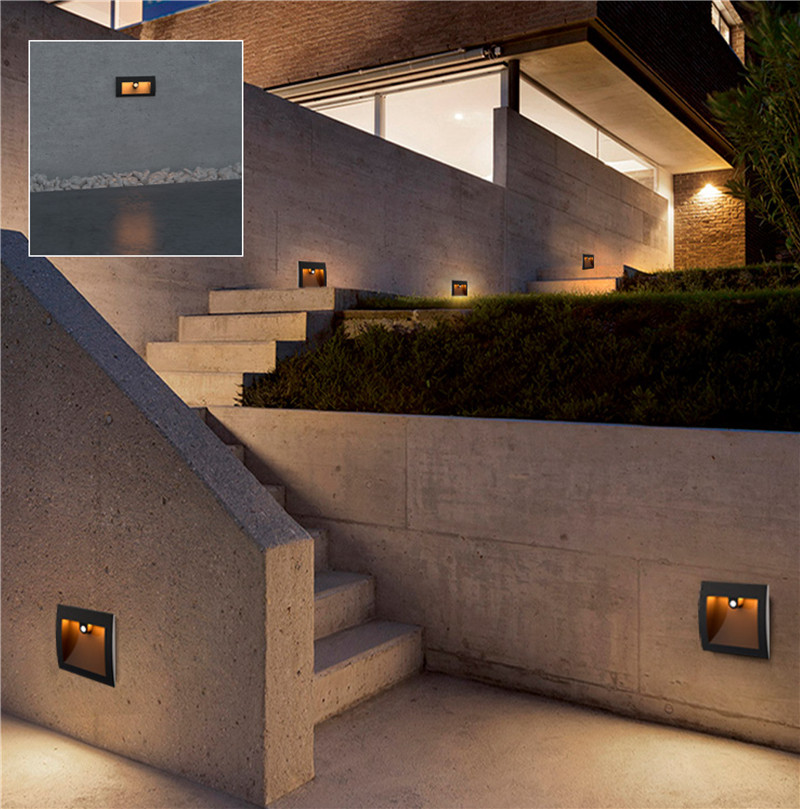

FG06613
FG06613
